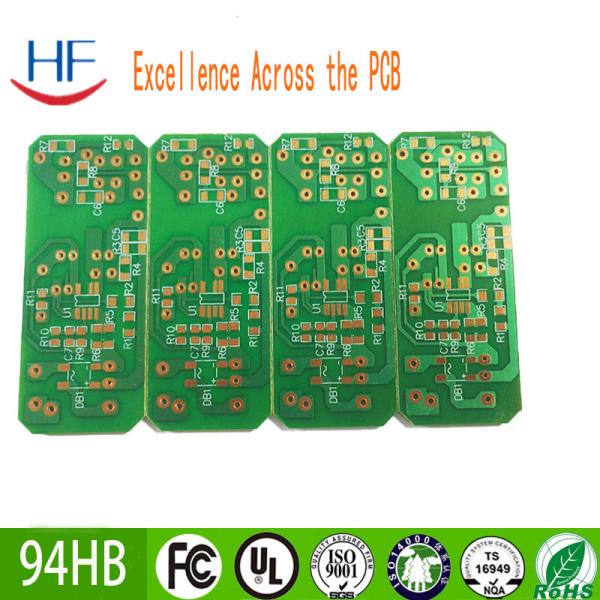

FR4 Copper Pcb Turnkey Solutions Electronics Single Sided

  • 1
  • 2

Brand Name : HF

Model Number : Single Sided PCB Board

Certification : ISO CE

Place of Origin : China

MOQ : 5PCS

Price : Negotiable

Payment Terms : L/C, T/T,PAYPAL

Supply Ability : 1000/㎡/day

Packaging Details : box

Delivery Time : 5~8 days

Base Material : FR-4 22F Cem-3

Number of Layers : single layer

Board Thickness : 0.6mm

Copper Thickness : 1oz

Solder mask color : green

silkscreen color : white

surface finishing : HASL(lead Free) / Immersion Gold /osp / Immersion tin/Immersion silver

Min. Hole Size : 0.20mm

Material : FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free

Layer Coun : 1-40

Service : OEM/ODM/PCB/Components Sourcing/Assembly/Programming/Testing...One-stop Turnkey Service.

Test : 100% AOI, X-ray, Flying probe test.

Contact Now

Product Description:
Base Material: FR-4
Board Thickness:0.4～3.2mm
Number of Layers: single Layer
Price: Negotiable
Min. Line Width:3 Mil
Min. Line Spacing:3 Mil
Surface Finishing:HASL(lead Free) / Immersion Gold /osp / Immersion tin/Immersion silver
Copper Thickness:1.0～3.0 Oz
Min. Hole Size: 4 Mil
Solder mask color:Green ,black, white,blue,yellow, red
Character color:white ,black
Place of Origin: Guangdong, China (Mainland)
Supply Ability:1000/㎡/day

Introduction:

Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.

Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.

Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).
